Powerhouse Package
Advantages and Features
- Real Thermal Efficiency 92%
- Possibility to Installing Condensing System
- Capable of Simultaneously Producing Hot Water
- Equipped with a Cathodic Protection System
- Equipped with a High Thermal Efficiency Burner
- Low Noise Compared to Similar Samples
- Easy to Maintain
The powerhouse package has an Iranian National Standard and Quality Control Certificate.
This package is equipped with cathodic protection system.
Steel used in the heat exchanger is stainless steel and active carbon with galvanized cover.
Product Introduction
The Powerhouse Package has the capability to produce hot water for heating and daily consumption. This package is installed outside of the house like powerhouse and the likely danger of applying similar packages like asphyxiation caused by gas and fire decreases significantly.
One of the problems associated with wall packages is to have small heat exchanger volume size inside of them and high risk of deposit formation. Powerhouse Package has the designed life at least 10 years and the capability to be serviced and pickled. In addition, enough space between coils reduces the possibility of deposits formation considerably.
Water consumption of each unit can be calculated by installing consumption meter and flow meter on hot water entrance. There is possibility to install pool heat exchanger, Jacuzzi, and even generate steam for saunas in the package. That is to say, this package can be used as a set with five independently outputs.
Features:
- Energy consumption of Powerhouse Package is 30% lower than that of wall-mounted or land packages available in the market. This package has a heat efficiency of 92% . There is the possibility to increase its efficiency to 96% by installing condensing system according to customer order.
- According to the special design of this package which has the capability to produce hot water for heating and daily consumption, there is no need the double glazing storage and coil storage. Furthermore, by applying this package, more room is provided in the powerhouse.
- Powerhouse Package has an Iranian National Standard and Quality Control Certificate.
- This package is equipped with cathodic protection system.
- Steel used in the pressurized region is DIN 17155-17MN4 and tube used are DIN17175-ST35.8.
- Steel used in the heat exchanger is stainless steel and active carbon with galvanized cover.
- A manhole valve and discharge nozzle are set to simplify primary and maintenance.
- Because of high heat efficiency and vertical design, the temperature difference between hot water in use and boiler is 100C.
- The exhaust gas temperature is maximum 25 0C higher than that of the temperature of the output hot water. By installing an economizer, exhaust gas temperature can be considered approximately isothermal with ambient temperature.
- The lens on the top of the boiler, is flange and has the capability to be separated and be serviced.
- Powerhouse Package is equipped by flat premix burner with high heat efficiency, low noise, and simplicity of primary and maintenance.

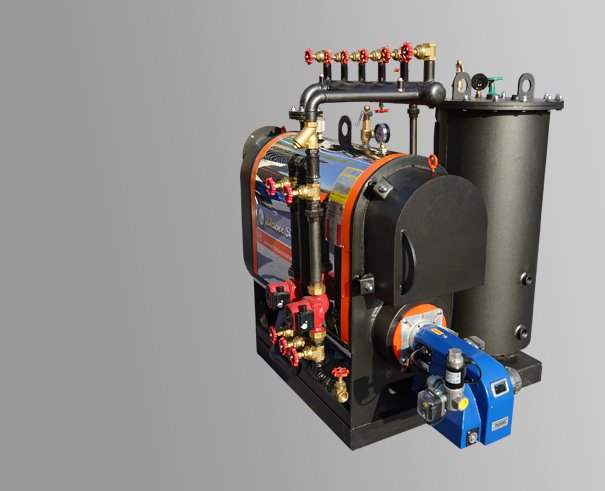

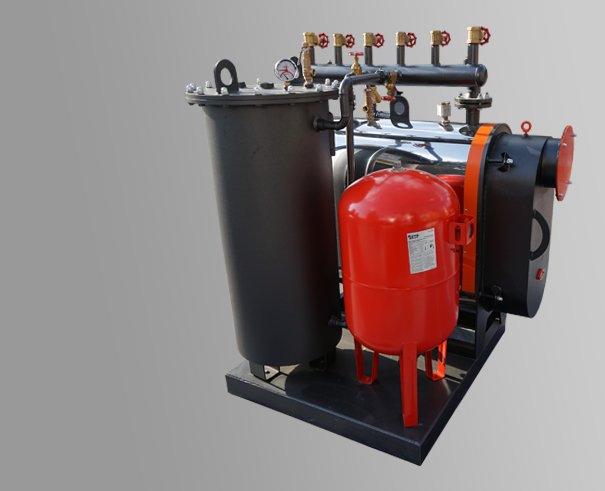

Selected Product Images
Standards
