Hot Oil Boiler
Advantages and Features
- Noticeable Efficiency of 85%
- Capability to Operate Until 350 °C
- Cost Reduction of Pumping Due to Low Pressure Loss in Oil
- High Security System
- Simplicity in Maintenance and Operation
- Satisfying All The Requirements of NFPA Standards
Less noise pollution compared with other boilers
There is no danger of corrosion or damage from freezing
Optimum energy consumption
Product Introduction
Water and steam are usually used as working fluid and heat carrier in industrial heating systems. However, at the high pressures and temperatures, these materials have some limitations in terms of installation and security of a system. Therefore, at high temperature applications like heating natural gas, crude oil and, indirect heating steam, hot oil can be utilized. Hot oil can operate at 300 °C and atmospheric pressure. By contrast, steam and water do need operation pressure of 85 bar.
Not to mention lower operation pressure, the use of hot oil at high pressure and temperature has some merits as follows:
- Optimum energy consumption,
- Capability to install in simple space,
- The least amount of time to reach desired temperature compared to other boilers,
- Simple operation,
- Less noise pollution compared with other boilers,
- Infinite heat capacity,
- No heat loss through condensation,
- Lower volume
- Primary feed water treatment process is not required,
- There is no danger of corrosion or damage from freezing;
Accurate and secure design of hot oil boilers for optimum utilization at high temperature is very important. Hot oil heating systems produced by Daboo-Sanat are designed based on international standards API and DIN 4754. These systems are integral oil tube coil and introduced to the market in two different models: horizontal and vertical. In addition, their capacity is between 100.000 kcal/h and 6.300.000 kcal/h. All of the construction levels are under direct supervision of Quality Control inspections.
Features:
- Noticeable efficiency of 85%,
- Capability to operate until 350 °C,
- Capability to tolerate thermal shock due to temperature difference between input and output oil until 50 °C,
- Cost reduction of pumping due to low pressure loss in oil,
- The use of high accurate control equipment produced by Europian companies,
- High security system,
- Simplicity in maintenance and operation,
- High safety factor in design and internal instrument and also, beauty by considering high consistency,
- There is a possibility to install a recuperator on flue gases from stack for preheating input air to increase efficiency;
- Satisfying all the requirements of NFPA satandards.
- Body and door insulation is made by ceramic fiber with 128 kg/m3 density and 100mm thickness.

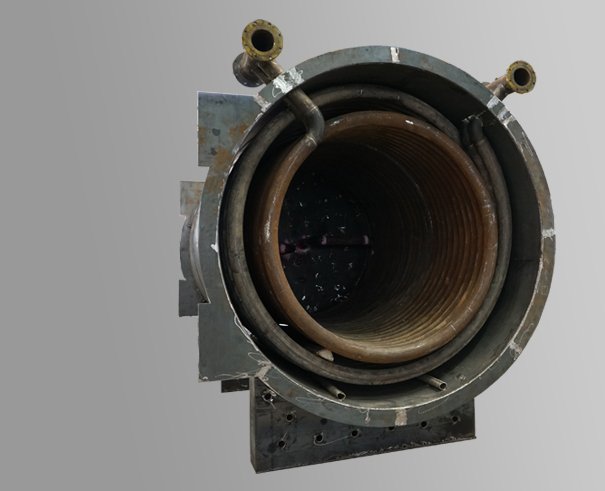

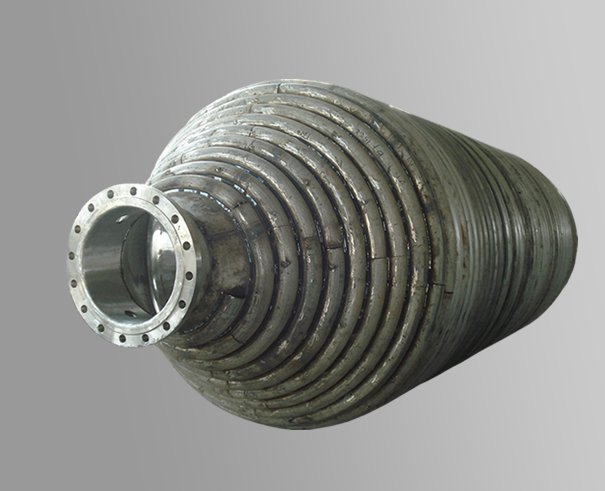

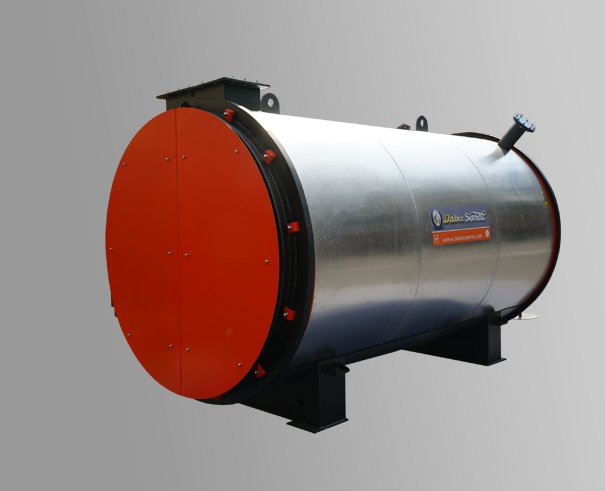

Selected Product Images
